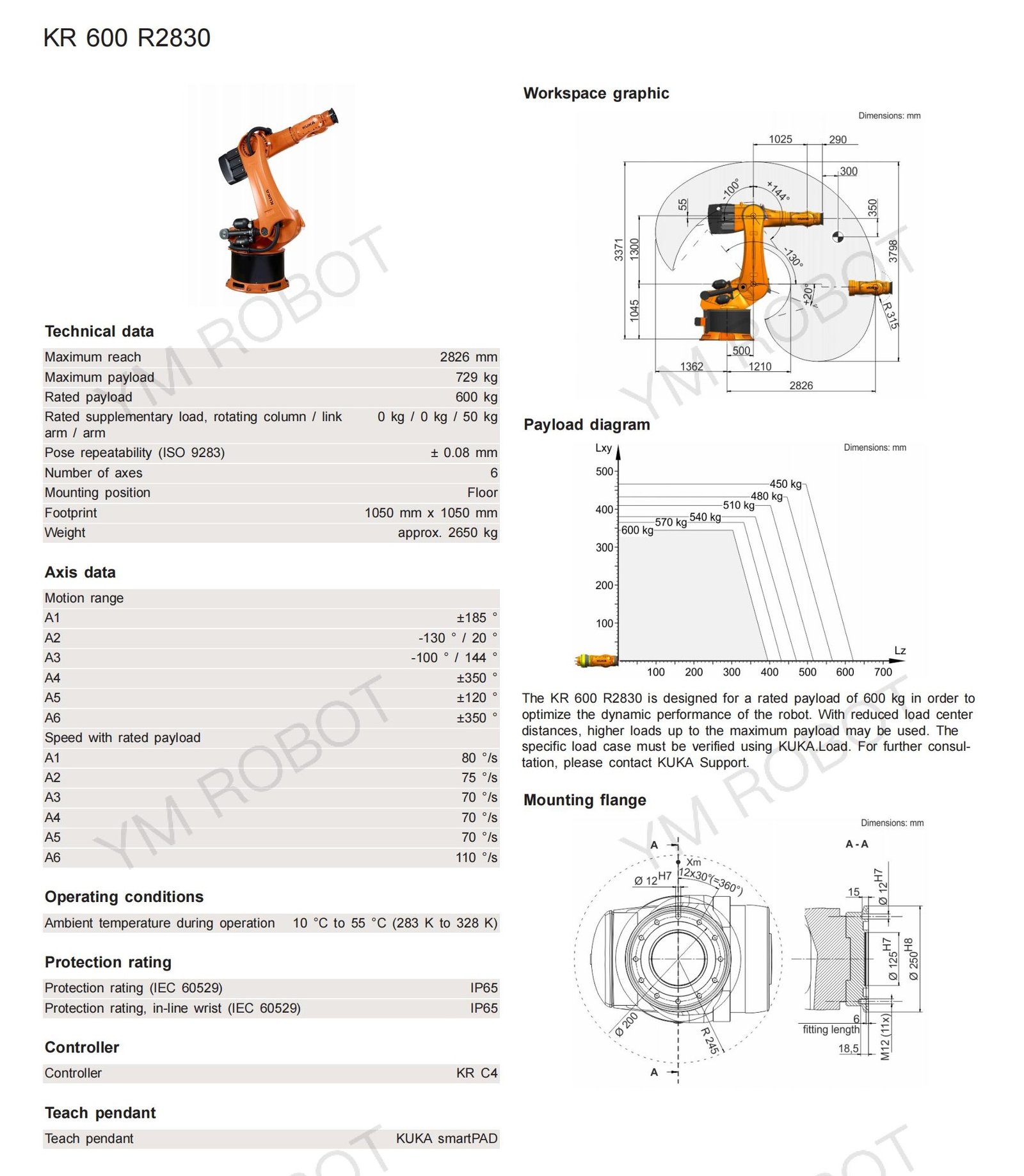

KR 600 R2830
The KR 600 R2830 is designed for a rated payload of 600 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. For further consultation, please contact YM ROBOT Support.
| Technical data | Axis data | ||||
| Maximum reach | 2826 mm | Motion range | Speed with rated payload | ||
| Rated payload | 729 kg | A1 | ±185 ° | A1 | 80 °/s |
| Maximum payload | 600 kg | A2 | -130 ° / 20 ° | A2 | 75 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 0 kg / 0 kg / 50 kg | A3 | -100 ° / 144 ° | A3 | 70 °/s |
| Pose repeatability (ISO 9283) | ± 0.08 mm | A4 | ±350 ° | A4 | 70 °/s |
| Number of axes | 6 | A5 | ±120 ° | A5 | 70 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 110 °/s |
| Footprint | 1050 mm x 1050 mm | ||||
| Weight | approx. 2650 kg | ||||
