KR 210 R3100-2
KR QUANTEC
KR QUANTEC's high-payload robot portfolio helps customers succeed with best-in-class reach and payload capacity. Its versatile design makes it suitable for virtually all market sectors, from automotive and foundry to medical, and everything in between.
Optimized portfolio for maximum flexibility and lowest total cost of ownership
The KR QUANTEC portfolio is developed based on KUKA's decades of automation experience. The end result: reliable, versatile, efficient, and high-quality solutions for your production environments. KR QUANTEC robots offer a uniquely broad range of applications, delivering superior performance, cost-effectiveness, and flexibility, from which customers benefit significantly.
A more streamlined modular system allows for flexible robots perfectly matched to tasks, with fast delivery and low total cost of ownership—primarily due to optimized maintenance and fewer spare parts. The robot portfolio also supports on-site payload upgrades and achieves ideal process quality through motion modes. These software plug-ins make KR QUANTEC a highly flexible machine and protect your future investments in production operations.

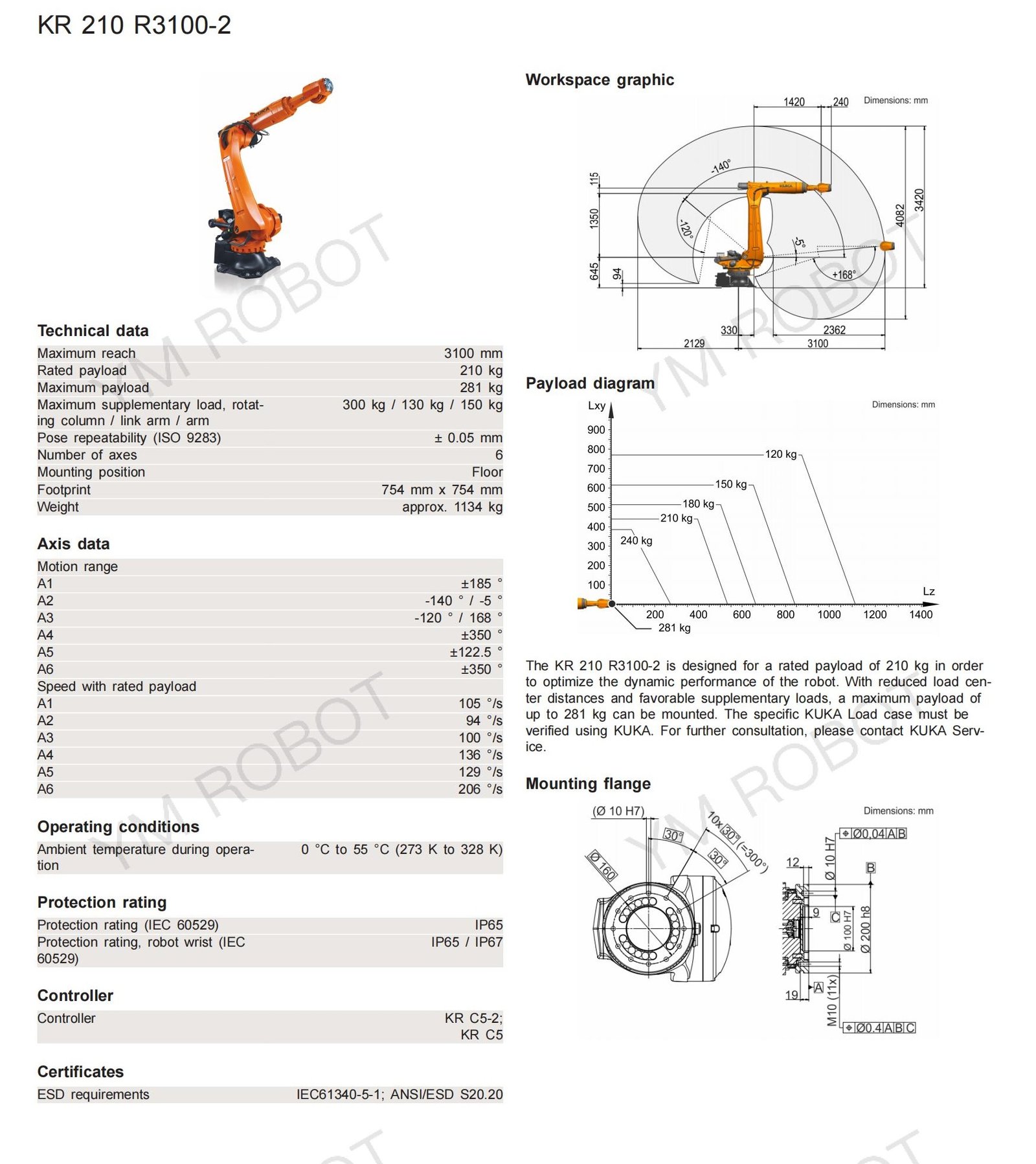

| Technical data | Axis data | ||||
| Maximum reach | 3100 mm | Motion range | Speed with rated payload | ||
| Rated payload | 210 kg | A1 | ±185 ° | A1 | 105 °/s |
| Maximum payload | 281 kg | A2 | -140 ° / -5 ° | A2 | 94 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 300kg/130kg/150kg | A3 | -120 ° / 168 ° | A3 | 100 °/s |
| Pose repeatability (ISO 9283) | ± 0.05 mm | A4 | ±350 ° | A4 | 136 °/s |
| Number of axes | 6 | A5 | ±122.5 ° | A5 | 129 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 206 °/s |
| Footprint | 754 mm x 754 mm | ||||
| Weight | approx. 1134 kg | ||||
