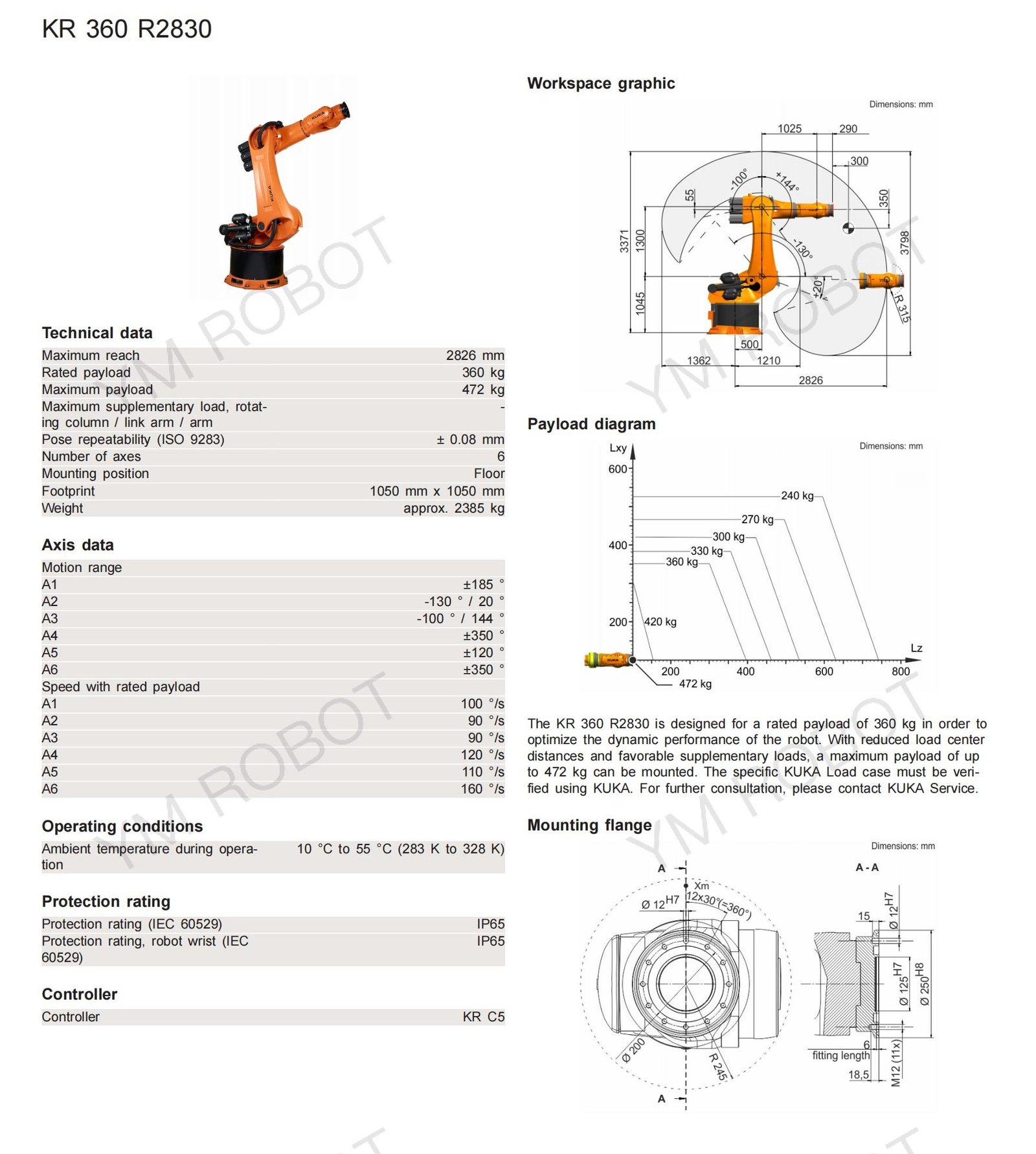

KR 360 R2830
KR 360 FORTEC
KR 360 FORTEC is our six-axis heavy-duty robot specifically designed for intelligent system concepts. With its exceptional precision and impressive reach, this heavy-duty industrial robot is particularly suitable for handling heavy components.
The dynamic KR 360 FORTEC articulated arm robot is specifically designed for handling heavy components. In terms of workspace, modularity, dynamism, and repeatability, this heavy-duty robot stands out in the market. The KUKA FORTEC series offers flexible solutions with a space-saving and cost-effective modular design. Multiple installation positions and special models pave the way for innovative solutions, enabling it to effortlessly perform heavy-duty tasks across various industries, especially in the automotive sector. This is attributed to the perfect fusion of powerful force (FORce) and advanced technology (TEChnology) in the FORTEC series.
| Technical data | Axis data | ||||
| Maximum reach | 2826 mm | Motion range | Speed with rated payload | ||
| Rated payload | 360 kg | A1 | ±185 ° | A1 | 100 °/s |
| Maximum payload | 472 kg | A2 | -130 ° / 20 ° | A2 | 90 °/s |
| Maximum supplementary load, rotating column / link arm / arm | - | A3 | -100 ° / 144 ° | A3 | 90 °/s |
| Pose repeatability (ISO 9283) | ± 0.08 mm | A4 | ±350 ° | A4 | 120 °/s |
| Number of axes | 6 | A5 | ±120 ° | A5 | 110 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 160 °/s |
| Footprint | 1050 mm x 1050 mm | ||||
| Weight | approx. 2385 kg | ||||
