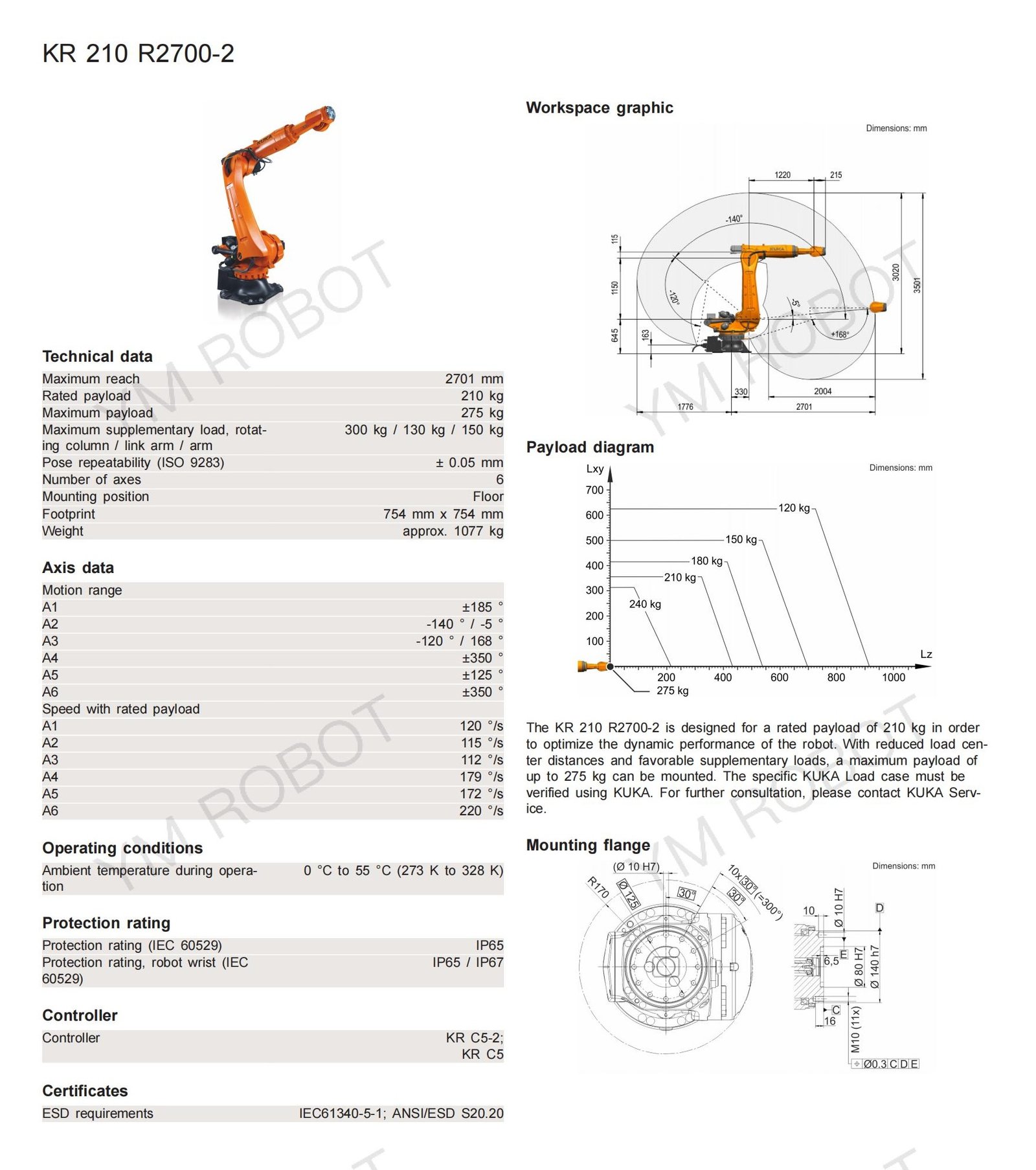

KR 210 R2700-2
KR QUANTEC
KR QUANTEC's high-load robot product portfolio, with the best arm reach and load capacity among similar products, helps customers achieve success. Its universal design makes it suitable for almost all market sectors, from automotive, foundry to medical, and all industries in between.
An optimized product portfolio to achieve maximum flexibility and the lowest total cost of ownership
The KR QUANTEC product portfolio is developed based on KUKA's decades of automation experience. The end result: reliable, versatile, efficient, and high-quality solutions for your production environment. KR QUANTEC robots have unique and wide-ranging applications, achieving excellent performance, cost-effectiveness, and flexibility, from which customers benefit greatly.
A more streamlined modular system allows for the creation of robots that are flexible and perfectly tailored to specific tasks, with fast delivery and low total cost of ownership - primarily due to optimized maintenance and fewer spare parts. This robot product portfolio also supports on-site load upgrades and achieves ideal process quality through motion patterns. These software plugins make the KR QUANTEC a highly flexible machine and ensure your future investments in production operations.

| Technical data | Axis data | ||||
| Maximum reach | 2701 mm | Motion range | Speed with rated payload | ||
| Rated payload | 210 kg | A1 | ±185 ° | A1 | 120 °/s |
| Maximum payload | 275 kg | A2 | -140 ° / -5 ° | A2 | 115 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 300kg/130kg/150kg | A3 | -120 ° / 168 ° | A3 | 112 °/s |
| Pose repeatability (ISO 9283) | ± 0.05 mm | A4 | ±350 ° | A4 | 179 °/s |
| Number of axes | 6 | A5 | ±125 ° | A5 | 172 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 220 °/s |
| Footprint | 754 mm x 754 mm | ||||
| Weight | approx. 1077 kg | ||||
