KR 300 R2700-2

Short Description:

KUKA Robot KR 300 R2700-2 Payload 300kg Reaching Distance 2701 mm...


  • Brand: KUKA
  • Model: KR 300 R2700-2
  • Payload: 300kg
  • Arm Reach: 2701 mm
  • Accuracy: ± 0.05 mm
  • Controlled Axes: 6
  • Weight: 1101 kg
  • Payment: T/T
  • Lead Time: 6-8 weeks

Product Detail

Product Tags

KR QUANTEC

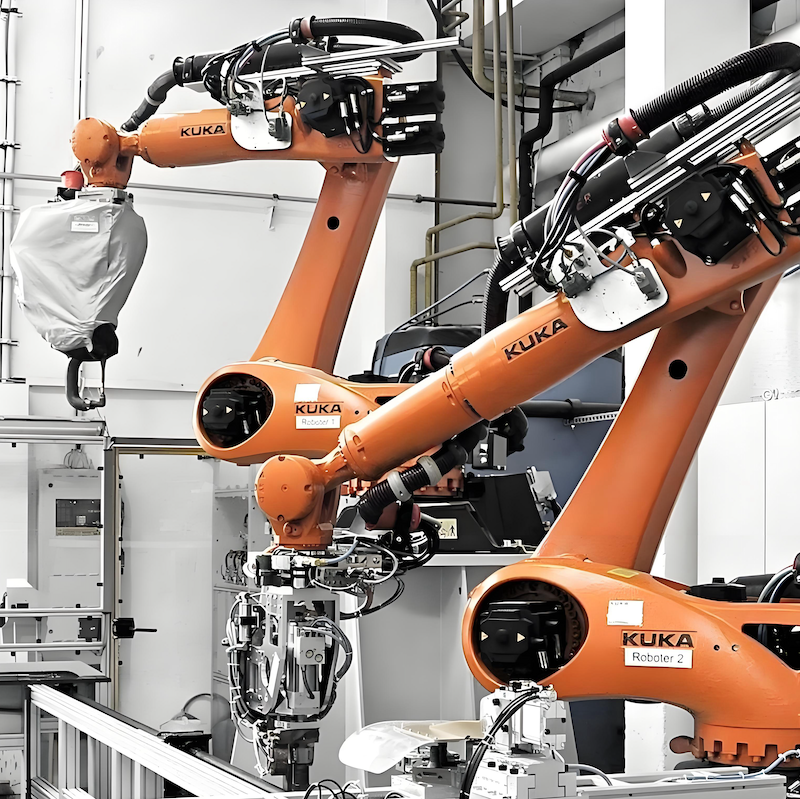

KR QUANTEC's high-payload robot portfolio helps customers succeed with best-in-class reach and payload capacity. Its versatile design makes it suitable for virtually all market sectors, from automotive and foundry to medical, and everything in between.

Optimized portfolio for maximum flexibility and lowest total cost of ownership

The KR QUANTEC portfolio is developed based on KUKA's decades of automation experience. The end result: reliable, versatile, efficient, and high-quality solutions for your production environments. KR QUANTEC robots offer a uniquely broad range of applications, delivering superior performance, cost-effectiveness, and flexibility, from which customers benefit significantly.

A more streamlined modular system allows for flexible robots perfectly matched to tasks, with fast delivery and low total cost of ownership—primarily due to optimized maintenance and fewer spare parts. The robot portfolio also supports on-site payload upgrades and achieves ideal process quality through motion modes. These software plug-ins make KR QUANTEC a highly flexible machine and protect your future investments in production operations.

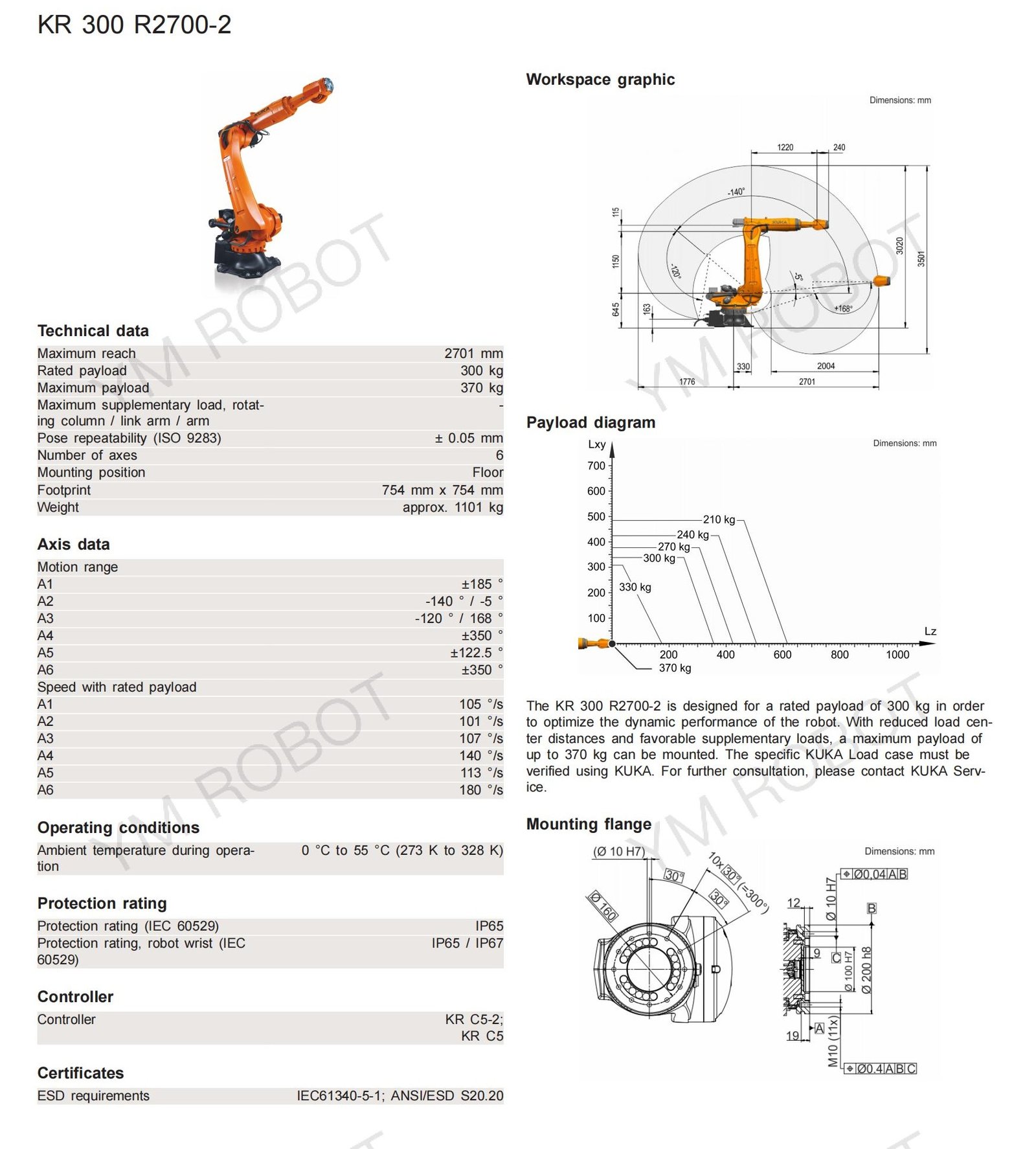

Technical dataAxis data
Maximum reach2701 mmMotion rangeSpeed with rated payload
Rated payload300 kgA1±185 °A1105 °/s
Maximum payload370 kgA2-140 ° / -5 °A2101 °/s
Maximum supplementary load, rotating column / link arm / arm-A3-120 ° / 168 °A3107 °/s
Pose repeatability (ISO 9283)± 0.05 mmA4±350 °A4140 °/s
Number of axes6A5±122.5 °A5113 °/s
Mounting positionFloorA6±350 °A6180 °/s
Footprint754 mm x 754 mm
Weightapprox. 1101 kg
