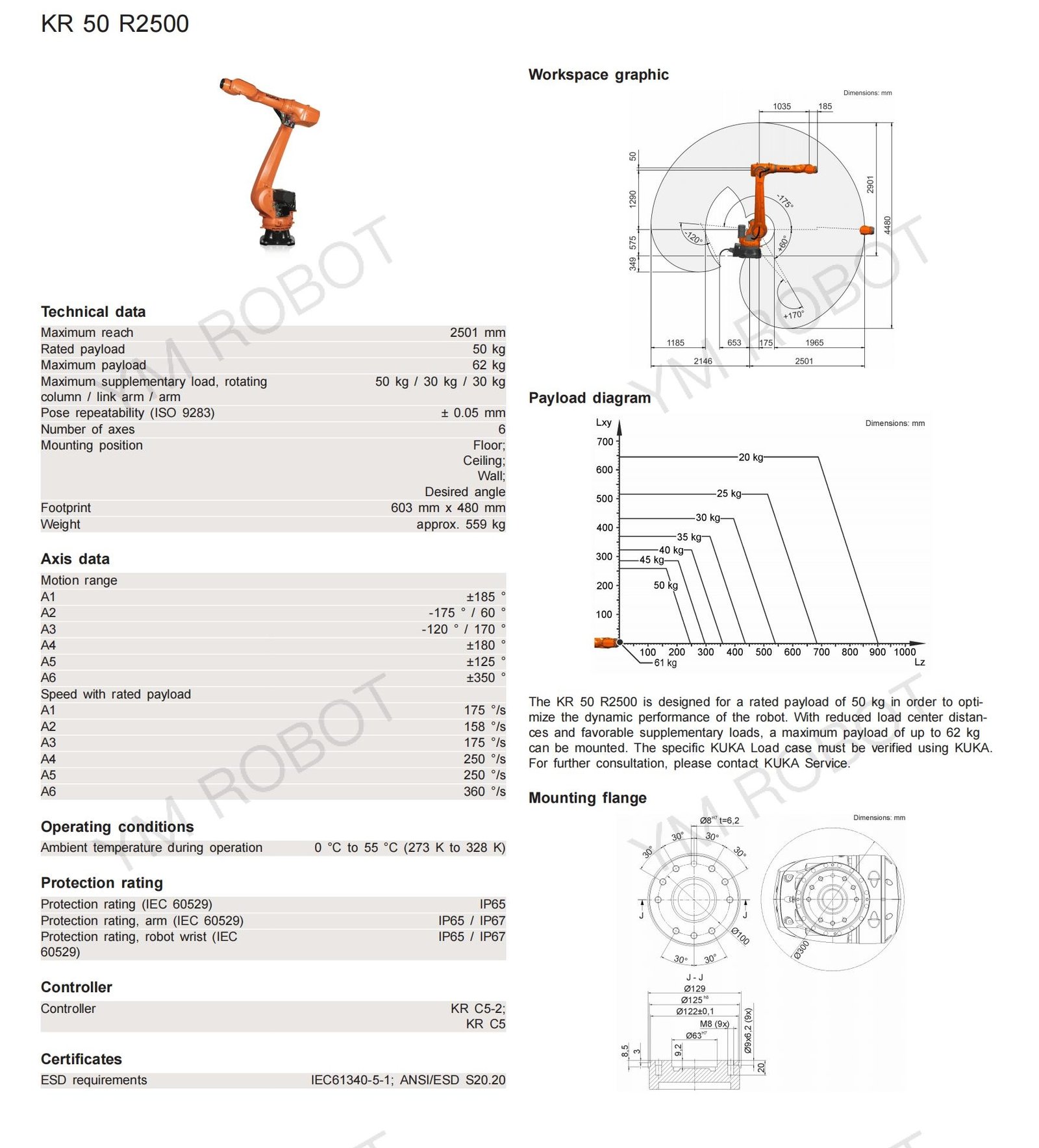

KR 50 R2500

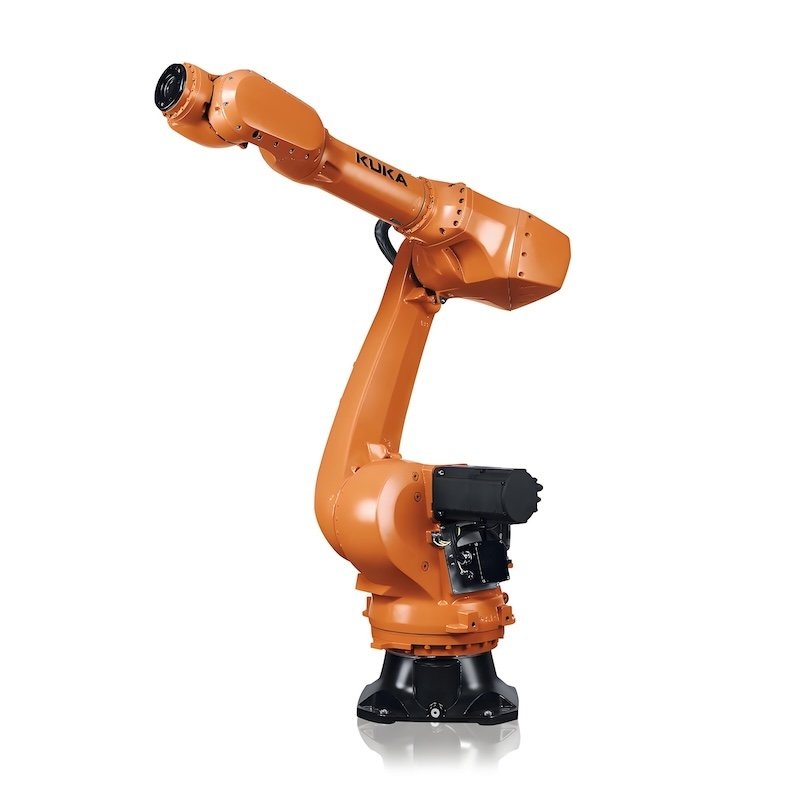

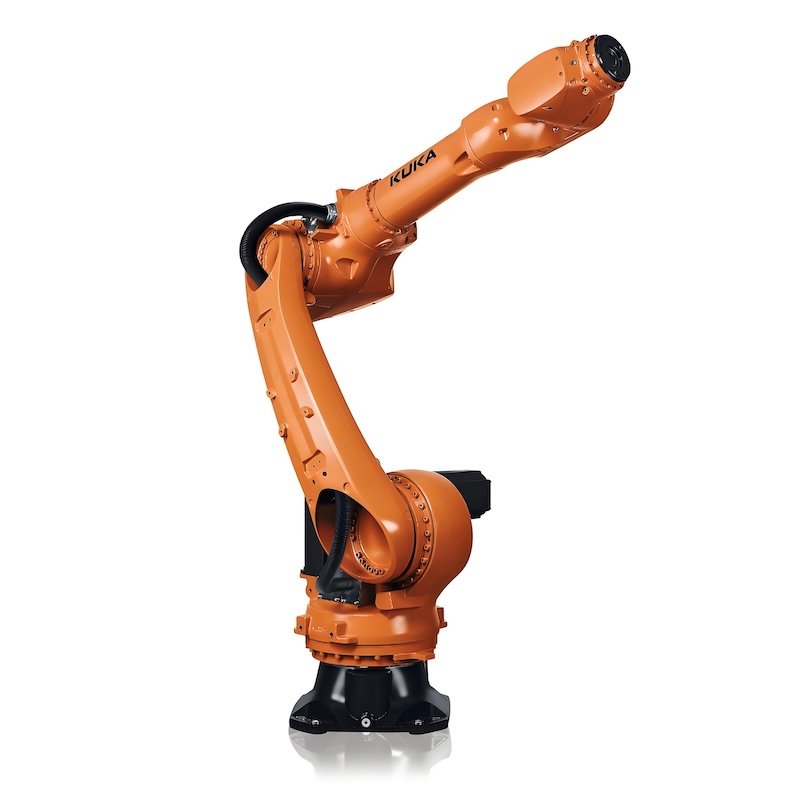

KR IONTEC
Selecting KR IONTEC means choosing a highly adaptable robot that boasts the best working range in its class. Its installation flexibility allows it to cater to a broad spectrum of applications, handling payloads from 20 to 70 kilograms with ease. KR IONTEC: A Robot Tailored for Diverse Applications in the Medium Load Category Whether installed on the floor, mounted on the wall, or positioned at an incline, KR IONTEC seamlessly integrates a compact design with the largest working range in its category, optimizing space utilization despite its small footprint. Featuring a waterproof and dustproof direct-connect wrist and protected motors, this robot is virtually suitable for all application scenarios. Additionally, its casting option enables it to operate in extreme high-temperature environments, withstanding an extended temperature range from 0° to 55°C.
| Technical data | Axis data | ||||
| Maximum reach | 2501 mm | Motion range | Speed with rated payload | ||
| Rated payload | 50 kg | A1 | ±185 ° | A1 | 175 °/s |
| Maximum payload | 62 kg | A2 | -175 ° / 60 ° | A2 | 158 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 50 kg/30 kg/30 kg | A3 | -120 ° / 170 ° | A3 | 175 °/s |
| Pose repeatability (ISO 9283) | ± 0.05 mm | A4 | ±180 ° | A4 | 250 °/s |
| Number of axes | 6 | A5 | ±125 ° | A5 | 250 °/s |
| Mounting position | Floor；Ceiling; Wall; Desired angle | A6 | ±350 ° | A6 | 360 °/s |
| Footprint | 603 mm x 480 mm | ||||
| Weight | approx. 559 kg | ||||
