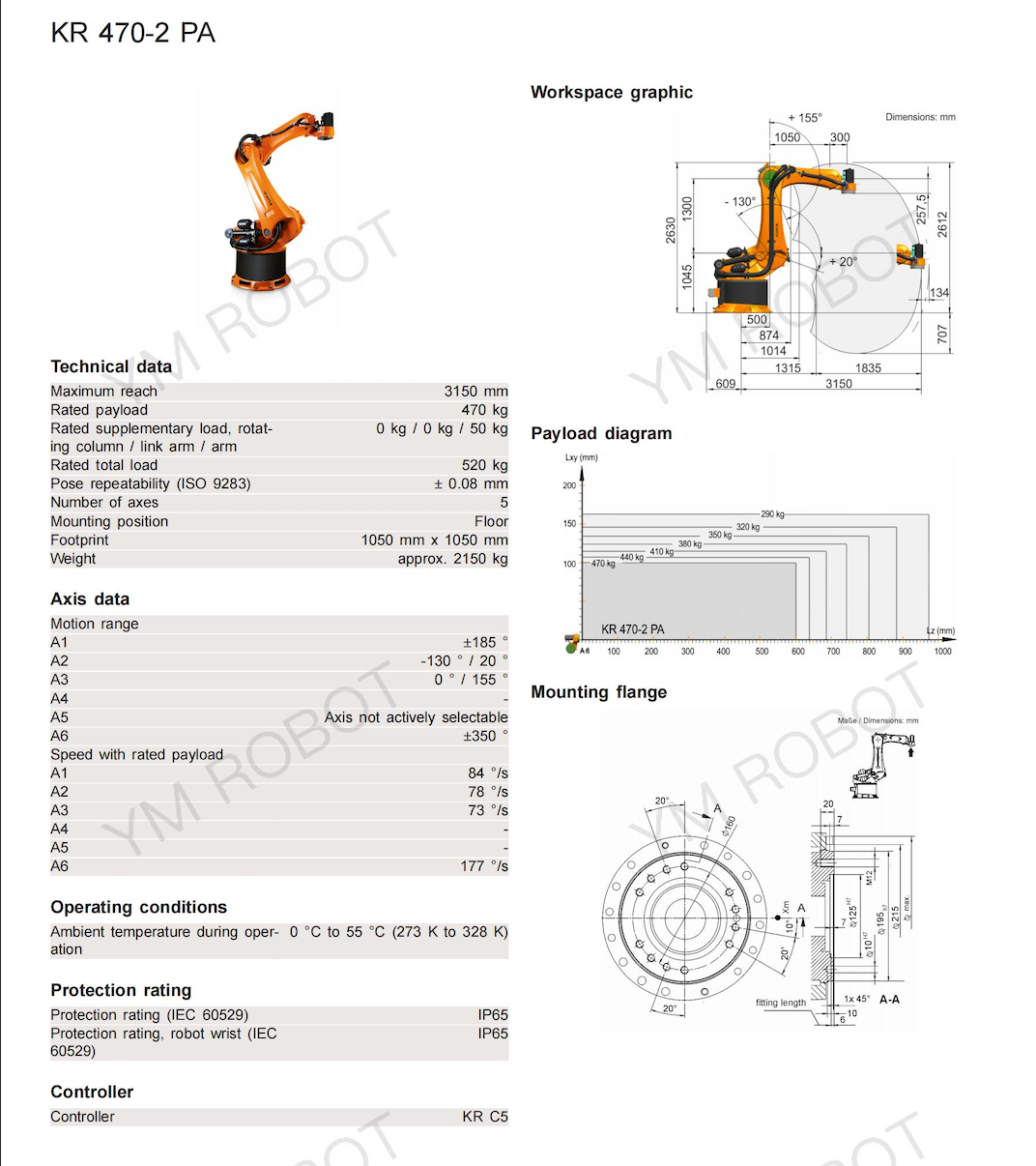

KR 470-2 PA
KR 470-2 PA
The KR 470-2 PA palletizer can reliably, accurately, and quickly complete the palletizing and picking of goods even in the narrowest spaces. This palletizer achieves optimal cycle times within its heavy-duty range and has a wide range of applications.
The KR 470-2 PA palletizer is compact, lightweight, and fast, ranking among the heavy-duty palletizers. It is highly suitable for handling goods weighing up to 470 kilograms. By replacing the height-increasing frames with different heights, the palletizer can flexibly adapt to various specific operational needs.
| Technical data | Axis data | ||||
| Maximum reach | 3150 mm | Motion range | Speed with rated payload | ||
| Rated payload | 470 kg | A1 | ±185 ° | A1 | 84 °/s |
| Maximum payload | 520 kg | A2 | -130 ° / 20 ° | A2 | 78 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 0 kg/0 kg/50 kg | A3 | 0 ° / 155 ° | A3 | 73 °/s |
| Pose repeatability (ISO 9283) | ± 0.08 mm | A4 | - | A4 | - |
| Number of axes | 5 | A5 | Axis not actively selectable | A5 | - |
| Mounting position | Floor | A6 | ±350 ° | A6 | 177 °/s |
| Footprint | 1050 mm x 1050 mm | ||||
| Weight | approx. 2150 kg | ||||
