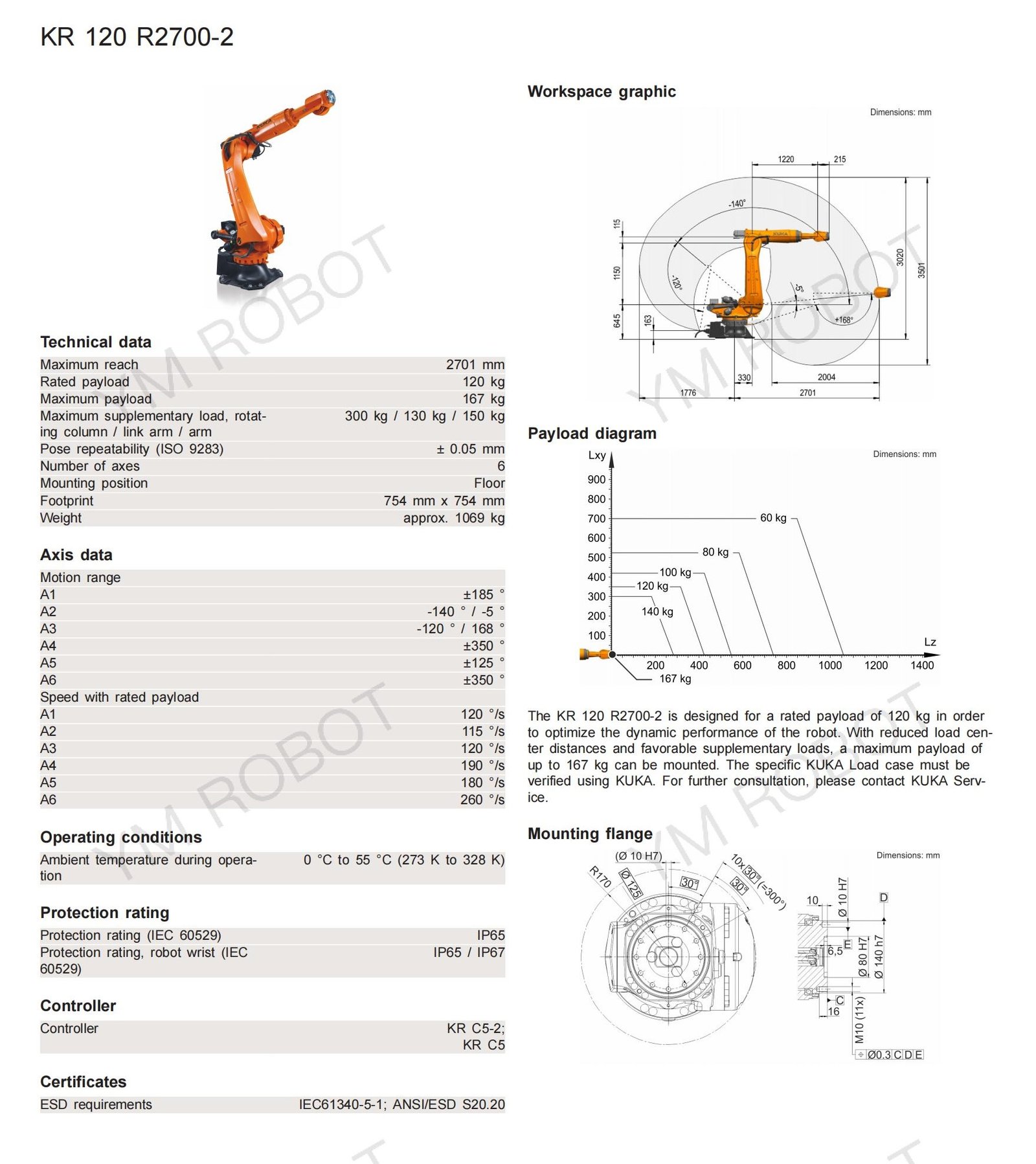

KR 120 R2700-2
KR QUANTEC
The KR QUANTEC high-load robot product line empowers customers to achieve success with the best reach and load capacity in its class. Its versatile design makes it suitable for nearly all market segments, spanning from automotive and foundry to medical applications and every industry in between.
Optimized product portfolio to achieve maximum flexibility and minimal total cost of ownership
The KR QUANTEC product portfolio is developed based on KUKA's decades of automation expertise. The ultimate outcome: delivering reliable, versatile, and high-quality solutions for your production environment. KR QUANTEC robots boast unique broad applicability, enabling exceptional performance, cost efficiency, and flexibility, which greatly benefit customers.
A more streamlined modular system enables the creation of flexible robots perfectly tailored to tasks, with rapid delivery and low total cost of ownership—primarily due to optimized maintenance and reduced spare parts. This robot product line also supports on-site load upgrades and achieves ideal process quality through motion modes. These software plugins make the KR QUANTEC a highly flexible machine, ensuring your future investments in production operations are safeguarded.

| Technical data | Axis data | ||||
| Maximum reach | 2701 mm | Motion range | Speed with rated payload | ||
| Rated payload | 120 kg | A1 | ±185 ° | A1 | 120 °/s |
| Maximum payload | 167 kg | A2 | -140 ° / -5 ° | A2 | 115 °/s |
| Maximum supplementary load, rotating column / link arm / arm | 300kg/130kg/150kg | A3 | -120 ° / 168 ° | A3 | 120 °/s |
| Pose repeatability (ISO 9283) | ± 0.05 mm | A4 | ±350 ° | A4 | 190 °/s |
| Number of axes | 6 | A5 | ±125 ° | A5 | 180 °/s |
| Mounting position | Floor | A6 | ±350 ° | A6 | 260 °/s |
| Footprint | 754 mm x 754 mm | ||||
| Weight | approx. 1069 kg | ||||
