GP8

Short Description:

YASKAWA Robot GP8 Payload 8 kg Reaching Distance 727 mm...


  • Brand: YASKAWA
  • Model: GP8
  • Payload: 8kg
  • Arm Reach: 727mm
  • Accuracy: ± 0.01 mm
  • Controlled Axes: 6
  • Weight: 35kg
  • Payment: T/T
  • Lead Time: 4-6 weeks

Product Detail

Product Tags

The Yaskawa GP series is a versatile portfolio of six-axis industrial robots with payload capacities ranging from 4 to 600 kg.

GP series robot models offer a variety of load/reach combinations, including versions with IP67 protection, food-grade lubricants, or special-purpose surface coatings, making them ideal for a wide range of automation tasks such as assembly, material handling, machine tending, deburring, or quality inspection.

The MOTOMAN GP8 is one of our most successful robot models ever. It is an extremely agile, compact, and versatile robot with an 8 kg payload, a 727 mm reach, and a repeatability of +/-0.01 mm. Our customers appreciate the GP8's performance in various handling, assembly, pick-and-place, and quality testing applications.

A high IP67 rating (dust and liquid protection) is standard, allowing the robot to operate in harsh environments. The GP8's optional anti-corrosion coating (ACC) protects the robot in corrosive environments such as those with acids, alkalis, and steam. Food-grade lubricant and CR5 cleanroom versions of the GP8 are also available.

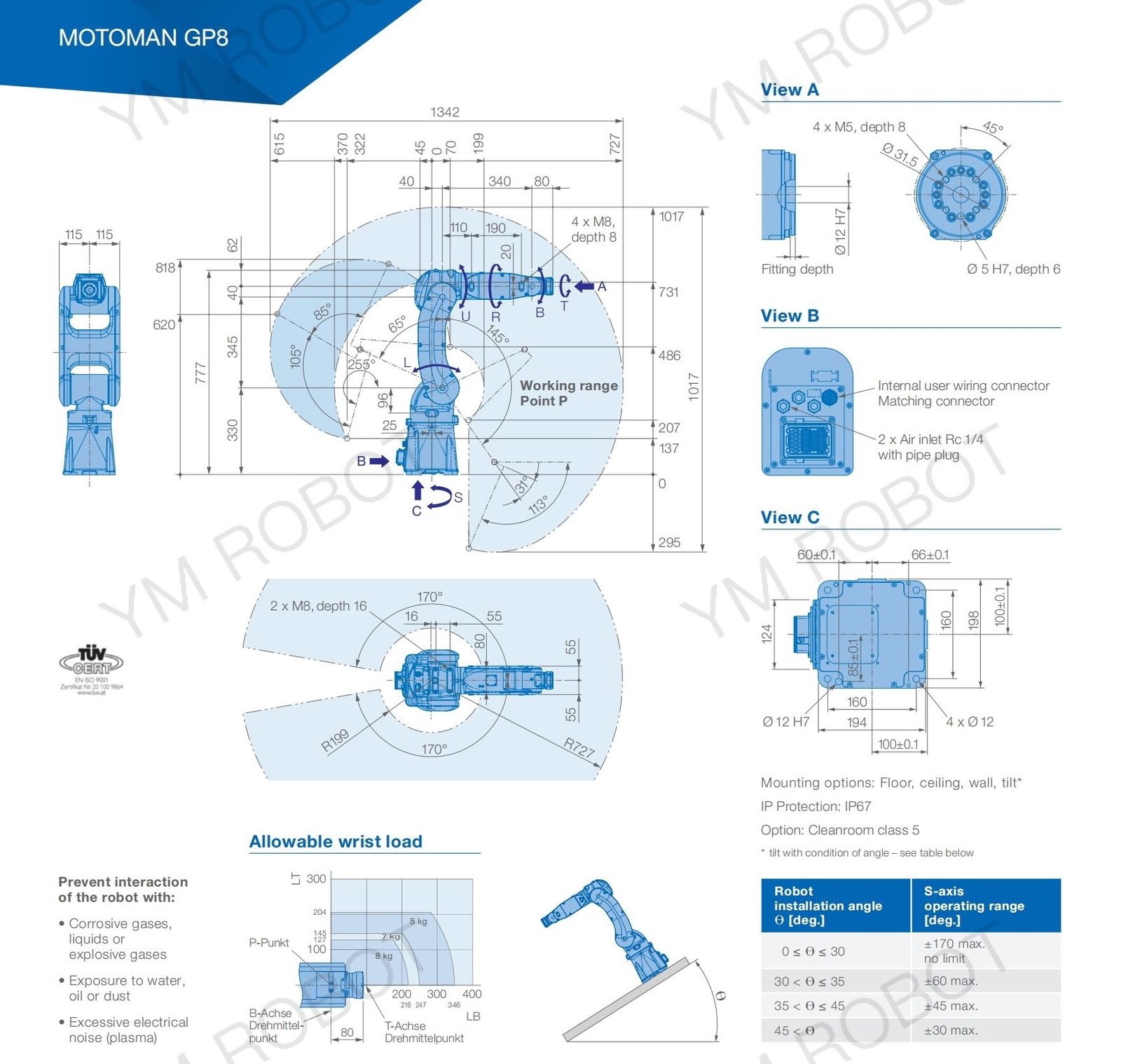

Specifications GP8
AxesMaximum motion range[°]Maximum speed[°/s]Allowable moment[Nm]Allowable moment of inertia[kg ·]Controlled axes6
Max. payload [kg]8
S±170455--Repeatability [mm]±0.01*
L+145/-65385--Max. working range R [mm]727
U+190/-70520--Temperature [°C]0 to +45
R±190550170.5Humidity [%]20 - 80
B±135550170.5Weight [kg]35
T±3601000100.2Max. connected load [kVA]1**
