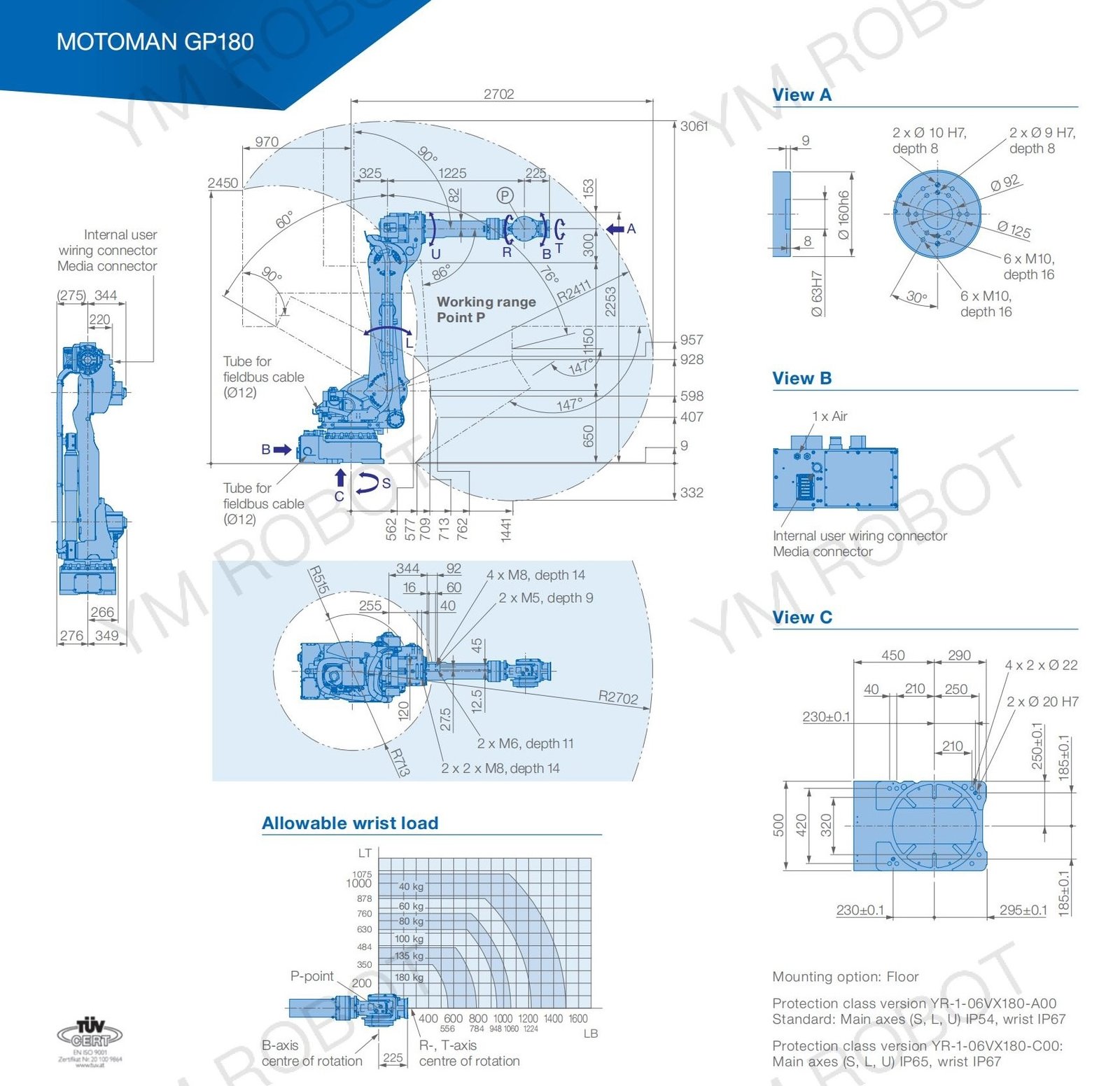

The MOTOMAN GP180 handling robot has an effective payload capacity of 180 kg, a maximum reach of 2,702 mm, and exceptional repeatability of +/- 0.05 mm.

The six-axis GP180 robot boasts rapid and precise performance, significantly enhancing productivity in high-load handling applications. With a wide working range and a streamlined upper arm design, it enables effortless operation of parts in confined spaces. The extensive wrist motion range minimizes interference with fixtures, while this low-interference design allows for close proximity placement. Eliminating the need for bulky mechanical balancers, the latest high-performance Sigma7 servo drive technology delivers rapid axis speed and powerful acceleration. The high-torque and inertia-rated wrist enables the GP180 robot to efficiently handle larger and heavier loads, achieving exceptional performance.

For harsh environments, we offer the GP180 version with an IP65/67 protection rating (dustproof and waterproof).

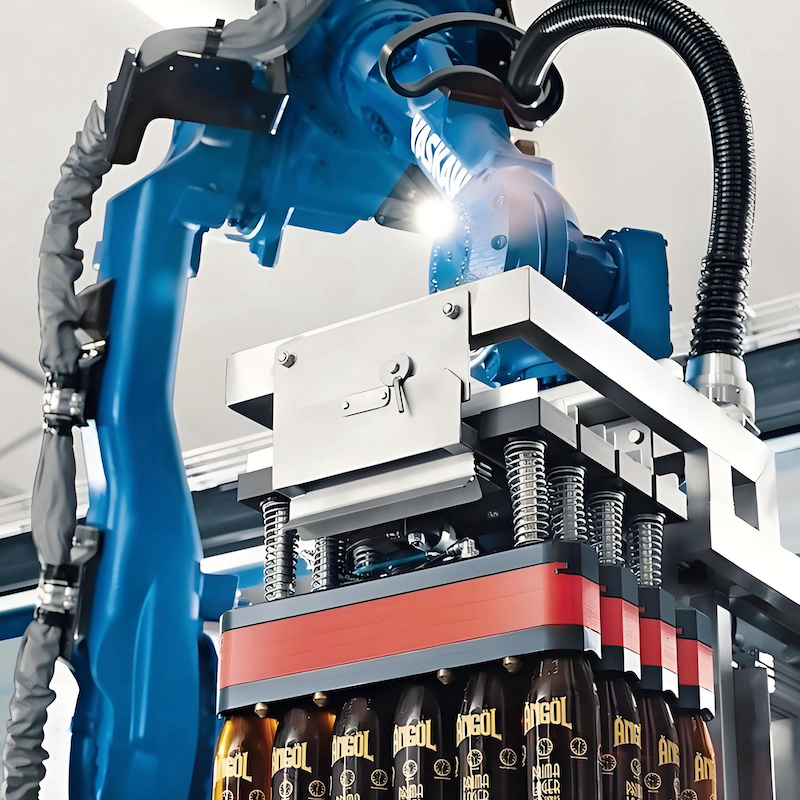

The GP180 is highly suitable for a wide range of applications, such as material handling, (remote) laser welding, spot welding, press operation, and material cutting/trimming.
