GP25

Short Description:

YASKAWA Welding Robot GP25 Payload 25 kg Reaching Distance 1730 mm...


  • Brand: YASKAWA
  • Model: GP25
  • Payload: 25kg
  • Arm Reach: 1730 mm
  • Accuracy: ± 0.02 mm
  • Controlled Axes: 6
  • Weight: 250kg
  • Payment: T/T
  • Lead Time: 4-6 weeks

Product Detail

Product Tags

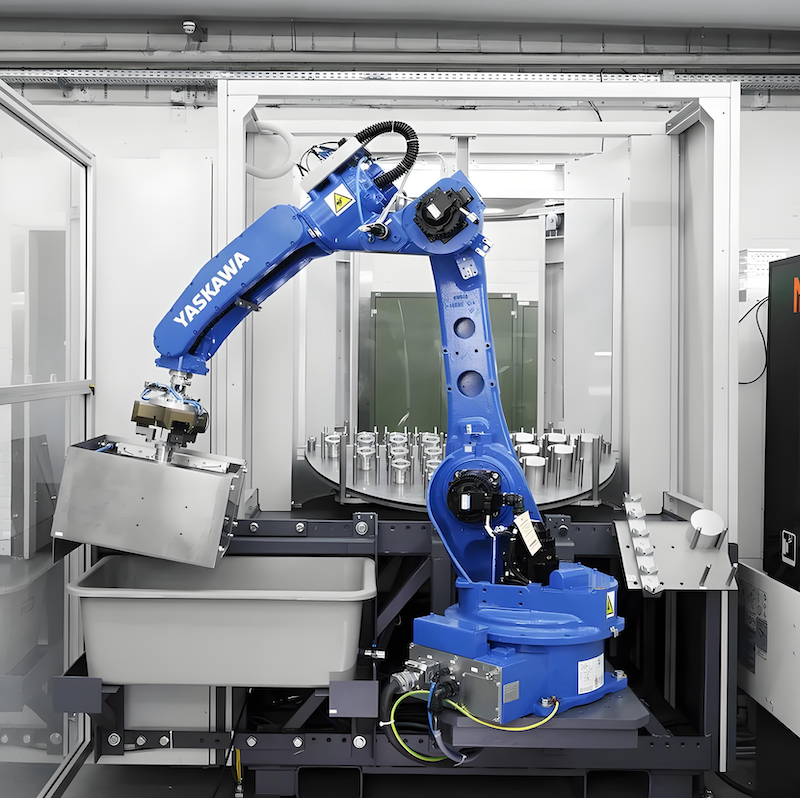

GP25 is a powerful six axis industrial robot with an effective load capacity of 25 kilograms, a working radius of 1730 millimeters, and a repeatability accuracy of+/-0.02 millimeters.

The GP25 robot provides a perfectly matched payload/speed/wrist torque combination, achieving excellent speed and acceleration performance. Its compact footprint and slim robotic arm design minimize installation space and minimize interference with peripheral devices. Fast and efficient installation - the dielectric cable passes through the hollow robotic arm and wrist structure.

The robot also offers a high protection level IP65/67 (dustproof, waterproof, and anti-corrosion coating) version, which can operate in harsh environments.

GP25 is suitable for various applications, such as machine tool loading and unloading, material handling, material removal, assembly, additive manufacturing, dispensing, and grinding/polishing.

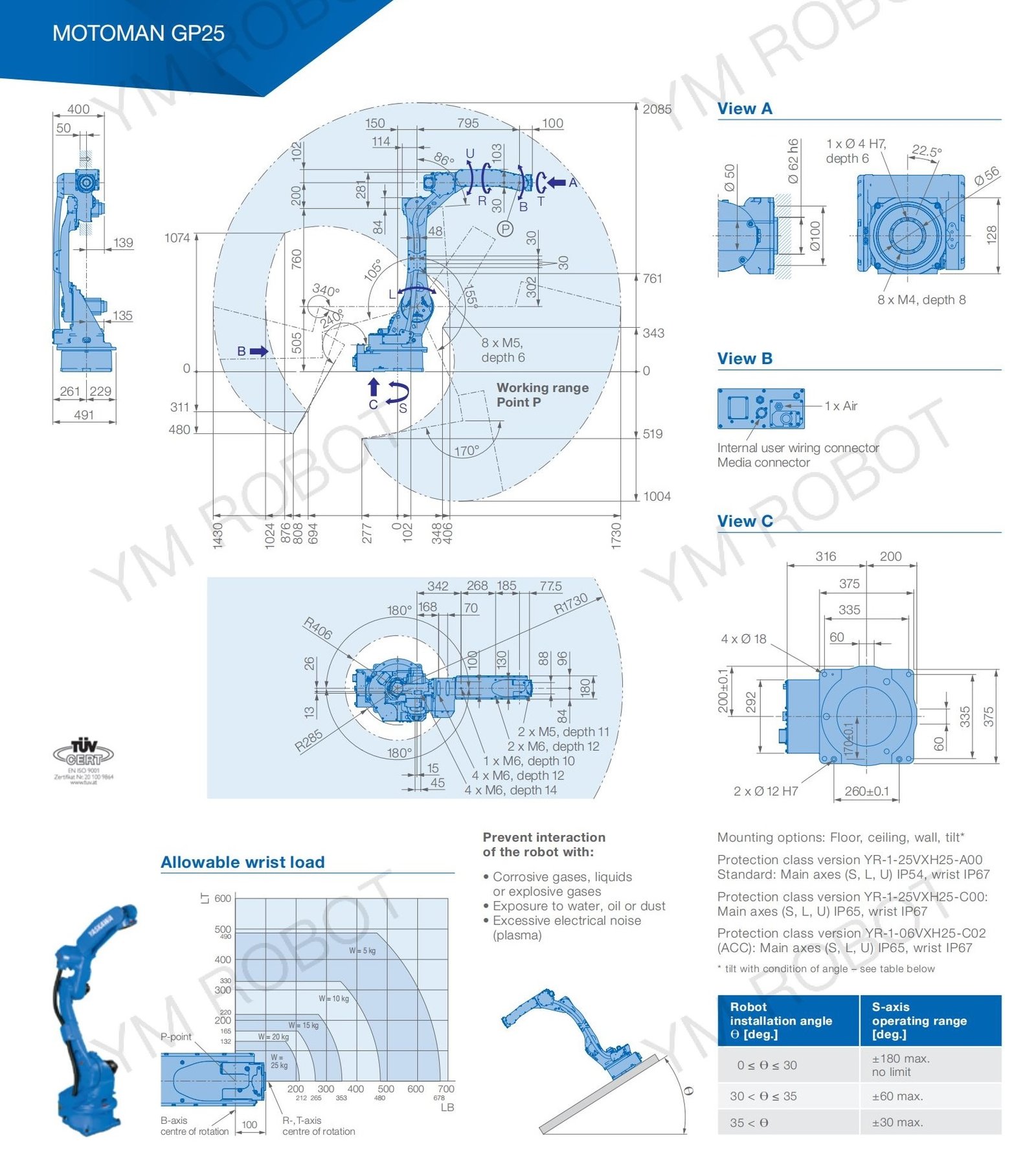

YASKAWA robot GP25.jpg

Specifications GP25
AxesMaximum motion range[°]Maximum speed[°/s]Allowable moment[Nm]Allowable moment of inertia[kg ·]Controlled axes6
Max. payload [kg]25
S±180210--Repeatability [mm]±0.02*
L+155/-105210--Max. working range R [mm]1730
U+160/-86265--Temperature [°C]0 to +45
R±200420522.3Humidity [%]20 - 80
B±150420522.3Weight [kg]250
T±455885321.2Max. connected load [kVA]2.0**
